Crawler Type Reclaimer, Crawler-Mounted Reclaimer, Reduce Product Cost, Improve Efficiency And Product Quality
Product Description

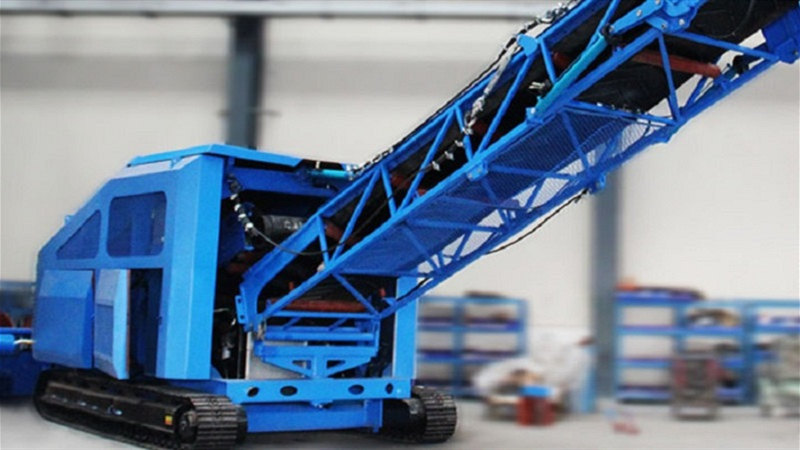

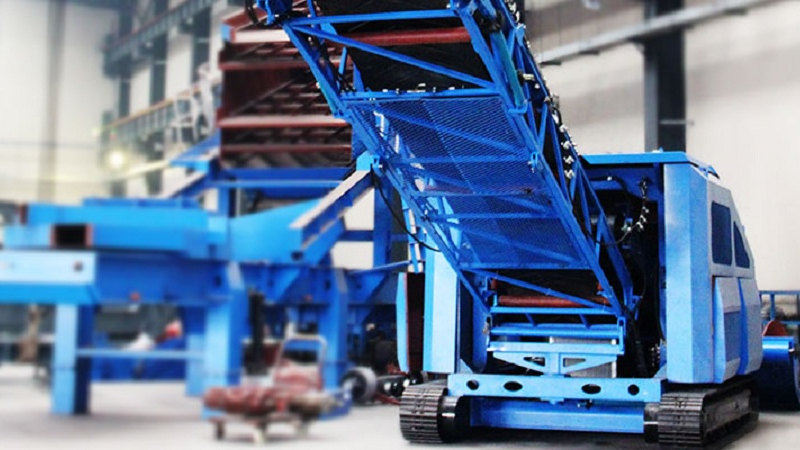

The crawler type reclaimer adopts advanced and reliable technology, which greatly improves work efficiency, reduces labor intensity and shortens the installation and shutdown time of vehicles, ships and aircraft. It is an effective equipment for enterprises to reduce product cost, improve efficiency and product quality.
It can directly transport bulk materials from ports, coal mines, sandstone mines, logistics centers and large bulk cargo storage sites to large trucks, ships and aircraft. It has high loading efficiency, high speed and can reach more than 800 tons per hour. It use 94KW diesel engine as power, the whole machine is driven by full hydraulic pressure.
Advantage Components of Products
1. Easy and convenient adjustment of unloading height and position, reduce vehicle movement frequency during loading, save energy and protect environment.
2. Conveyor folding can be accomplished by simple operation, which greatly reduces the distance of transportation.
3. Open engine overhaul space, easy and comfort maintenance.
4. Open material through space is suitable for different specifications of materials, large pitch spiral and pattern conveyor belt to meet the requirements of large conveyor volume.
5. The long distance wireless remote control can clearly observe every movement of the machine in the operation process, and complete the operation adjustment safely and comfortably.
6. Clear screen and instrument make the operation of the machine clear at a glance.
7. Self-service refueling can be easily completed without additional refueling equipment.
Characteristics
1. Easy to use. Transmission with spiral feeding, crawler walking and folding conveyor belt.
2. The whole machine is very convenient to move and suitable for any environment of stone loading operation.
3. Conveyor belt can be adjusted freely, left and right directions can be adjusted, the truck does not need to move when loading.
4. Applicable goods: stones, sand and other bulk materials loading trucks.
5. Applicable models: for large trucks and ships.
Technical Parameter
| Shape and Weight | Transport Length | Transport Width | Transport Height | Transport Weight | Capacity |
| 12000mm | 3300mm | 3760mm | 17000kg | 600~800 t/h |
| Bucket and Screw | Bucket Width | | | Driving Form | |
| 3400mm | | | Hydraulic | |
| Belt Conveyor 1 | Width | Length | | Driving Form | |
| 1000mm | 6000mm | | Hydraulic | |
| Belt Conveyor 2 | Width | Length | Maximum Unloading Height | Driving Form | |
| 1000mm | 8000mm | 5200mm | Hydraulic | |
| Engine | Model | Power | Rotation Speed | | |
| QSB Series | 94kw | 1800r/min | | |
| crawler | Model | Width | Length | Maximum Moving Speed | |
| Level 18T | 400mm | 3470mm | 1.2km/h | |
