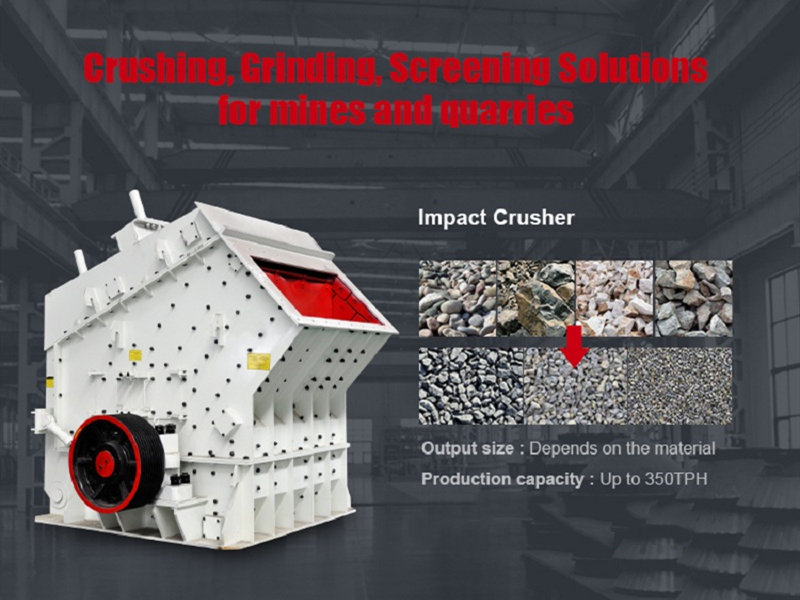

CH Series Impact Crusher, Primary Impact Crusher, Simple Design Impact Sand Making Machine, Impact Rock Crusher
Product Description
CH series impact crusher is manufactured on the basis of advanced foreign technology and domestic applications. With the advantages of more human-oriented, simple design, reasonable structure, better cavity and large capacity, CH series impact crusher can crush all kinds of ores in primary and secondary crushing process.
Materials:Granite, limestone, concrete, lime, plaster, limestone, etc.
Applications:Mining, metallurgy, construction, highway, railroad, water conservancy, etc.
Features
1. Heavy type rotor with optimized design, reasonable structure and enhancing rotational inertia can take finite element endurance analysis. It can achieve higher crushing ratio, better crushing and abrasion resistance performance.
2. Standard scale board can increases interchangeability, which will decrease spare part repertory and variety, and make replacement much easier.
3. Unique hydraulic device design is convenient for operators to open the chassis, replace accessories, and adjust the discharge gate.
4. The simple structure of impact frame and grinding frame has the advantages of easy operation, convenient maintenance and low cost.
Technical Parameters
| Model | Max Feed edge(mm) | Capacity(t/h) | Motor power(kW) | Weight(Excluding Motor)(t) |
| with grinding cavity | without grinding cavity |
| CHP4939(A) | 500 | 90-160 | 110-132 | 14.696 | 13.596 |
| CHP4955(A) | 500 | 100-260 | 132-200 | 17.43 | 16.12 |
| CHP5159(A) | 600 | 180-300 | 200-250 | 21.2 | 22.12 |
| CHP5559(A) | 650 | 220-450 | 250-315 | 27.046 | 25.438 |
| CHP5979(A) | 700 | 250-550 | 400-440 | 36.45 | 34.3 |
| CHP6379(A) | 800 | 300-600 | 440-560 | 55.5 | 42.3 |
| CHP7179(A) | 1000 | 500-850 | 630 | 84.1 | 78.9 |
| CHP7998(A) | 1200 | 800-1200 | 1250 | 111.5 | 101.2 |
| CHS4528(A) | 250 | 40-70 | 37-55 | 11.8 | 10.98 |
| CHS4539(A) | 300 | 70-100 | 55-75 | 14.4 | 13.47 |
| CHS4939(A) | 350 | 100-180 | 110-132 | 14.696 | 13.596 |
| CHS4955(A) | 350 | 150-290 | 132-200 | 17.43 | 16.12 |
| CHS5159(A) | 400 | 180-350 | 200-250 | 21.05 | 22.04 |
| CHS5559(A) | 450 | 250-450 | 250-315 | 27.046 | 25.438 |
| CHS5979(A) | 500 | 280-550 | 400-440 | 36.7 | 34.6 |
| CHS6379(A) | 600 | 300-600 | 440-560 | 56.4 | 43.5 |
| CHS7179(A) | 700 | 500-850 | 630 | 84.1 | 78.9 |
| CHS7998(A) | 1000 | 700-1100 | 1250 | 115.6 | 109.5 |
Note:
The capacity is total tons per hour passing through crusher at open circuit when crushing medium and low hardness materials with the bulk density of 1.6x10³kg/m³. Capacity is relative to physical character, feeding type, feeding size, composition, etc.
